Description
-

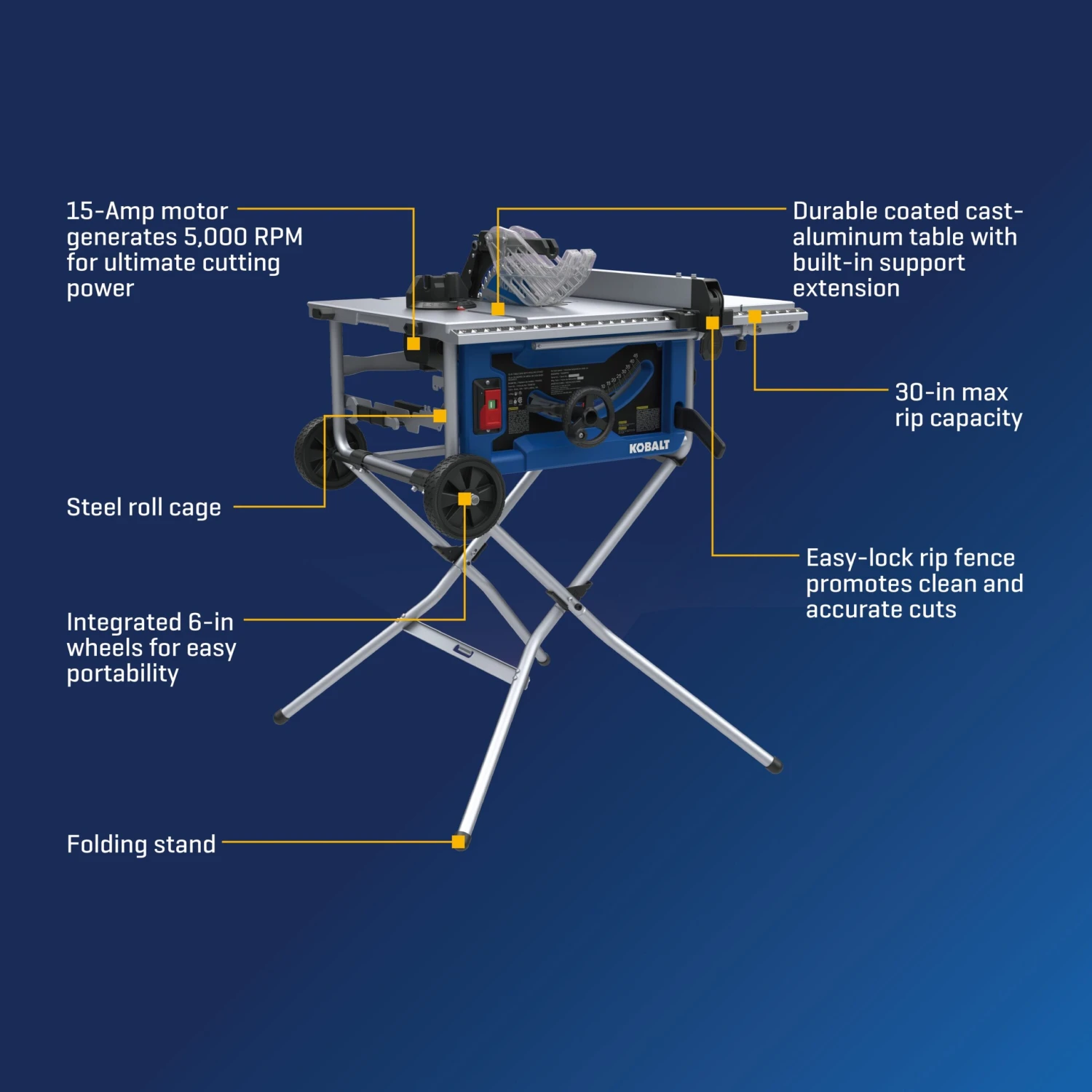

Powerful 15-amp motor generates 5,000-RPM for precise cuts of jobsite and workshop task
-
30 in max rip capacity for cutting a variety of materials
-

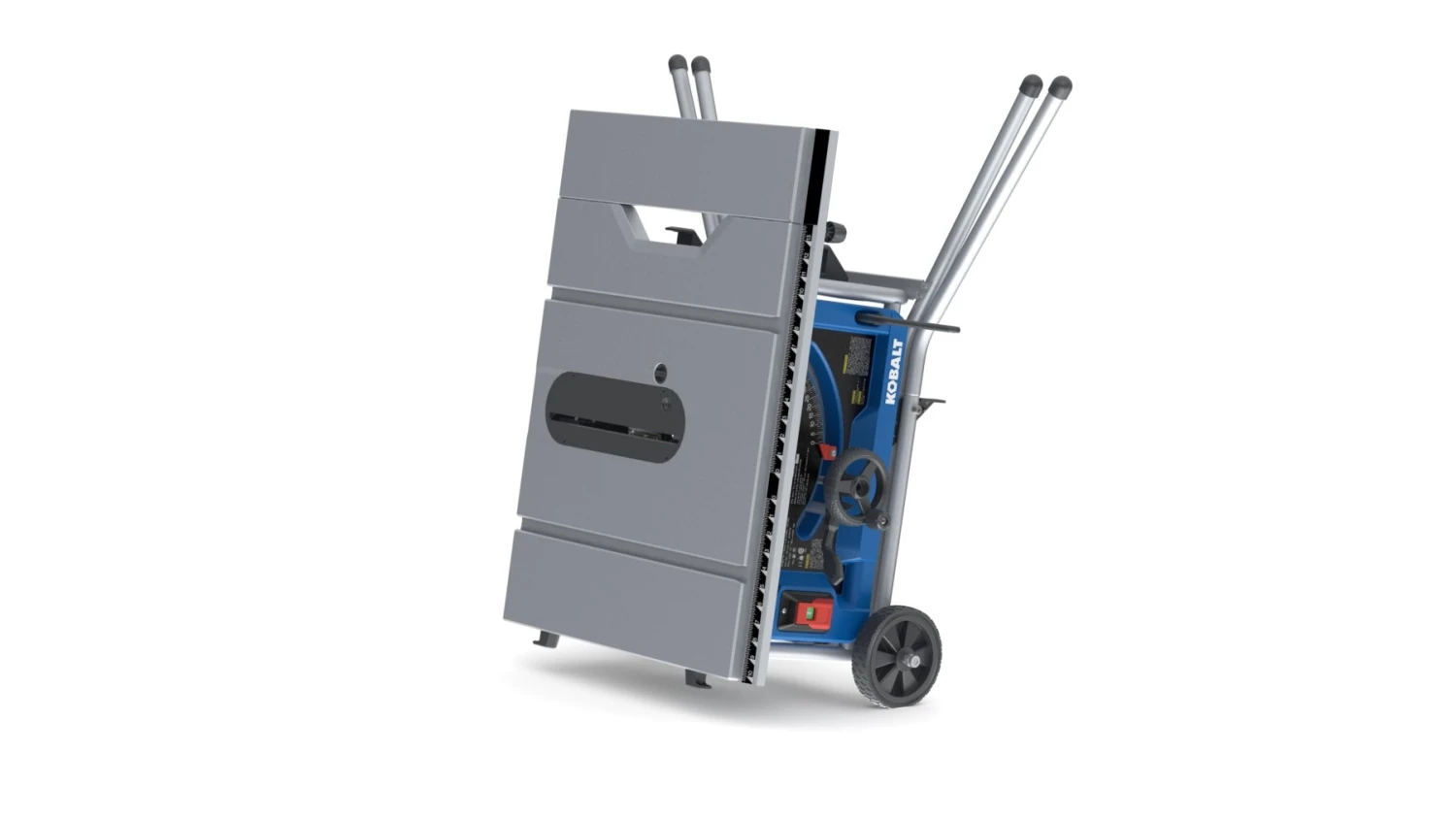

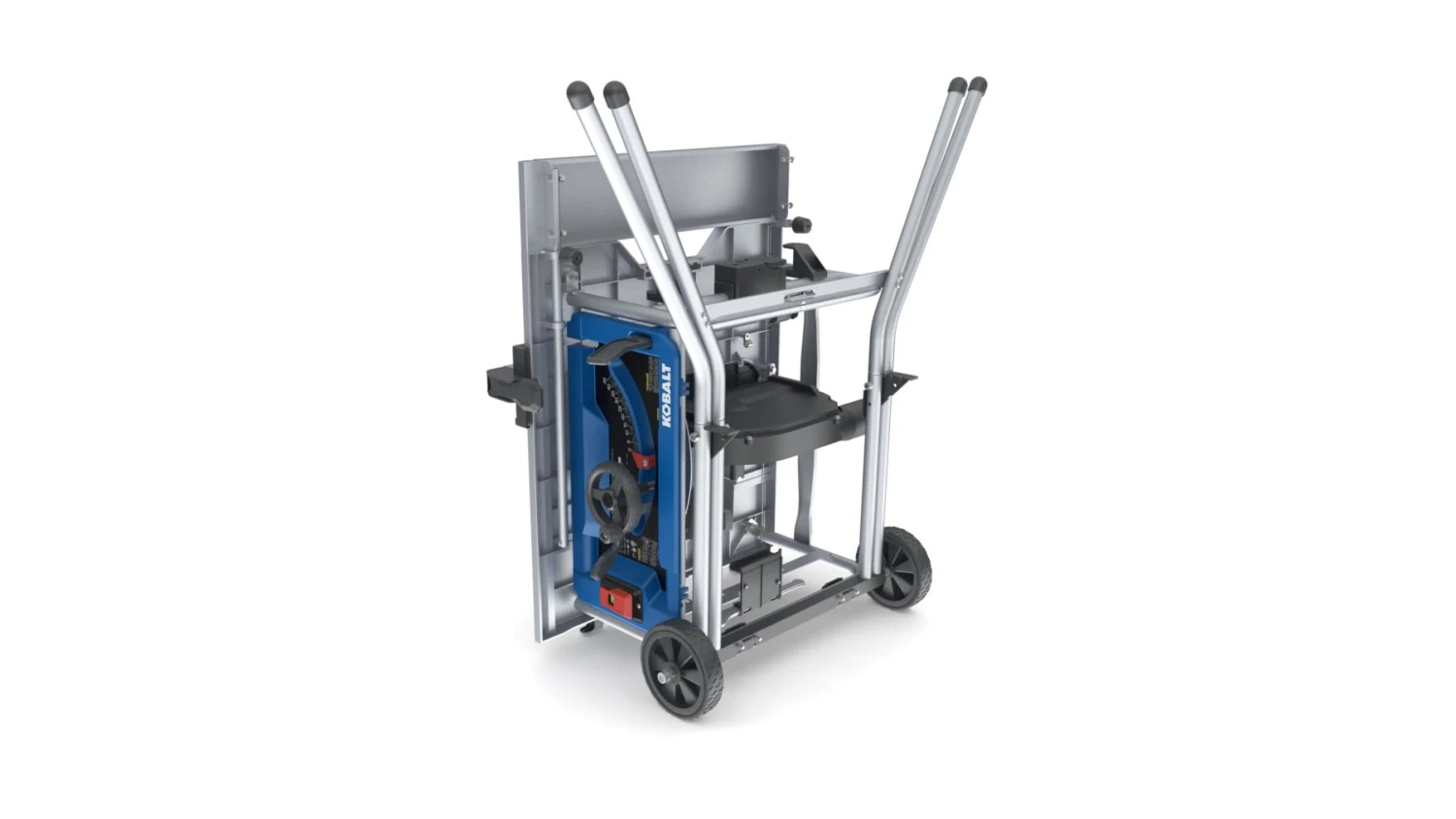

Folding stand with durable integrated 6-in wheels for easy portability and storage
-

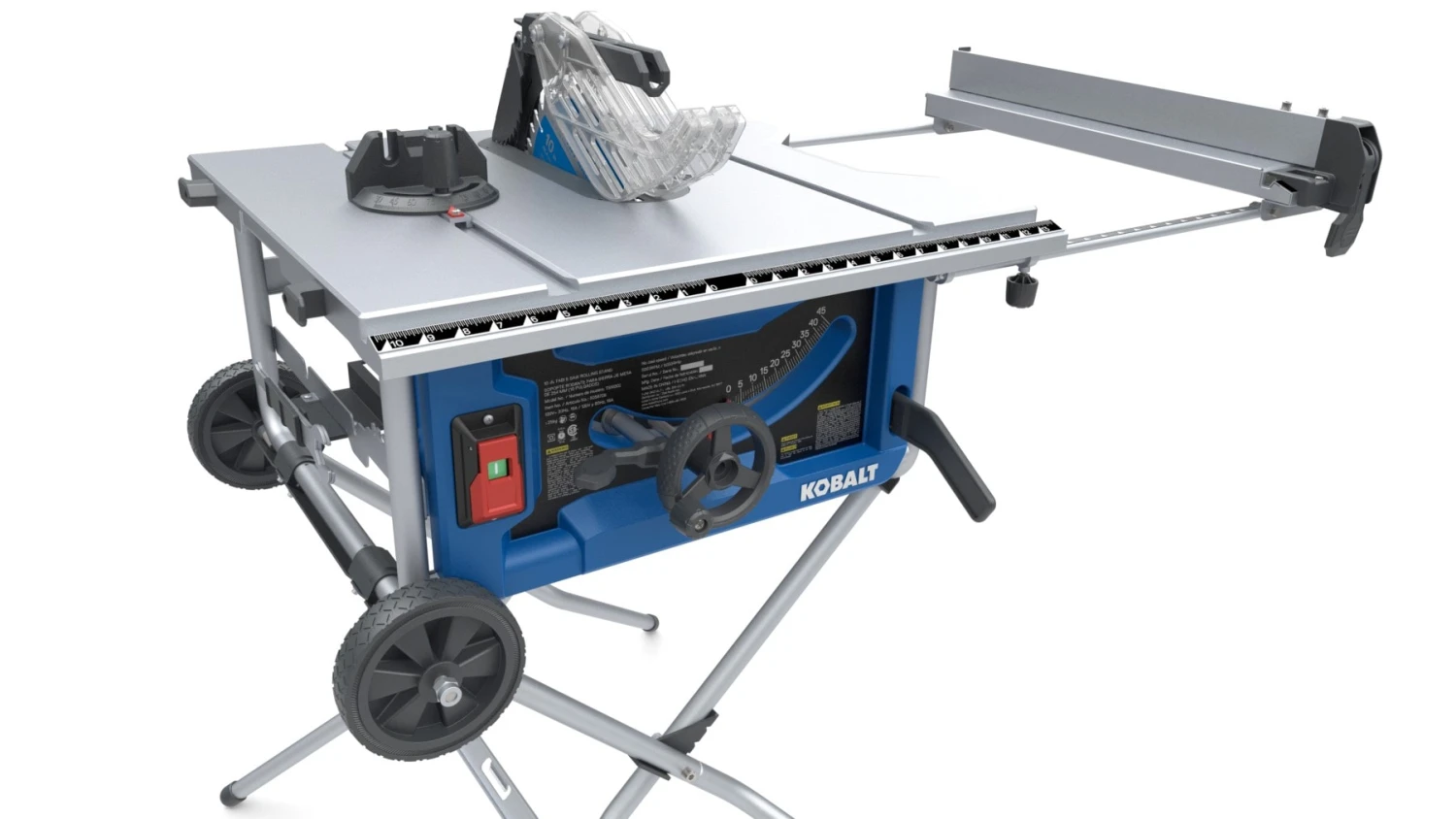

Durable coated cast-aluminum table with built in support extension
-
Easy-lock rip fence promotes clean and accurate cuts
-
Steel roll cage design for added durability and strength
-
The max cutting depth is 3 -1/8 inches at 90 degrees and 2 -1/4 inches at 45 degrees
-
On board storage keeps accessories secure when not in use
-
Includes: stand, rip fence assembly, miter gauge, blade wrenches, push stick, 10-in 24T carbide tipped blade, blade guard and anti-kickback pawls
Specifications
| Type | Jobsite |
|---|---|
| Blade Material | Carbide-tipped |
| Stand Type | Folding |
| Arbor Diameter | 5/8-in |
| Bevel Capacity (Degrees) | 45 |
| Blade Size (Inches) | 10 |
| Cutting Depth (Inches) | 3.125 |
| Depth Control | No |
| Left Rip Capacity (Inches) | 10 |
| Maximum Depth at 45 Degrees (Inches) | 2.25 |
| Maximum Depth at 90 Degrees (Inches) | 3.125 |
| Right Rip Capacity (Inches) | 30 |
| Saw Blade Diameter | 10-in |

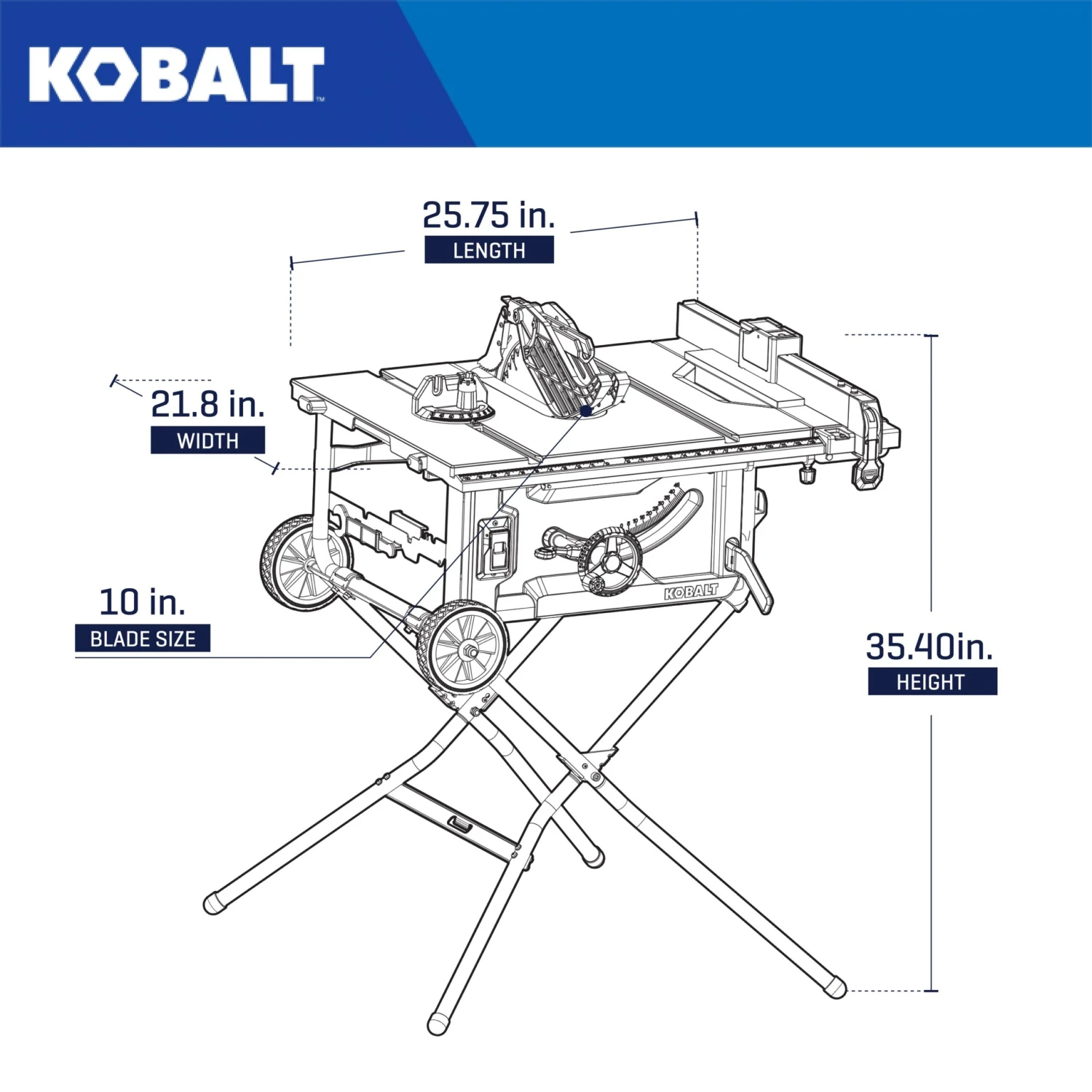

| Table Height (Inches) | 35.40 |
| Table Length (Inches) | 25.75 |
| Table Width (Inches) | 21.80 |
| Weight (lbs.) | 64.90 |
| Amps | 15 |
| Auxiliary Handle | No |
| Battery Included | No |
| Blade Included | Yes |
| Caster Platform Included | No |
| Charger Included | No |
| Cordless | No |
| Dust Handling | Port |
| Maximum Blade Speed (RPM) | 5000 |
| Micro Adjust Rip Fence | No |
| Portable | Yes |
| Repetitive Cut Marking System | No |
| Spindle Lock | No |
| Voltage | 120 |
| Worm Drive | No |
| Warranty | 3-year limited |
| CA Residents: Prop 65 Warning(s) | Yes |
| Safety Listing | CSA safety listing |
| UNSPSC | 23101500 |
